Place of Origin : China
MOQ : 10 Pieces Negotiable
Price : Negotiable
Payment Terms : T/T, Western Union,L/C
Supply Ability : 5000 Piece/Pieces per Month
Delivery Time : 15 work days
Packaging Details : Bag
Product Name : PVS-31 Binocular Night Vision
Battery type : Lithium battery (cr123x1) / cr123x4 external battery pack
Power supply : 1.4-4.2V
Installation : Head mounted(standard Universal helmet interface)
Control mode : OFF/ON/AUTO/IR
Power consumption : <0.15W
Battery life : ≥60hrs
Magnification : 1X±5%
FOV : 40°±2°
IT : Gen2+/3 P43/P45
Lens system : F1.2 / 25mm
Resolution : 57-64lp/mm
Optical distortion : 3% Max
Coating : Multi-layer broadband coating
Focal Range : 250mm-∞
Eye relief : 25mm
Diopter : -4 - +2SD
EPD adjustment range : 54-80mm
IP Rating : IP65
Dimension : 112 x 105 x 86mm
Weight : 490G(battery included)
Operating Temp : -40 - +50℃
Brand Name : Silk
Pvs-31 night vision manual system gain and focus adjustment for custom image quality optimization
Helmet night vision goggles lightweight ergonomic design reduces weight on the head and stress on the neck
Military night vision goggles optional diopter lenses optimize operator preference for visual acuity
Night Vision's rotating binoculars are designed to remain discreet with the helmet when retracted and can optionally be used as monoculars
Night vision goggles military grade works with the tuxedo helmet mount currently in use
Binoculars Night Vision device automatically turns off when stowed; power resumes when deployed
Left and right monocular LEDs alert the operator when the BNVD's battery life is no less than 10 minutes
Night Vision replaceable/upgradeable I2 tube assembly
| Product name | PVS-31 Binocular Night Vision |
|
Power supply |
1.4-4.2V |
|
Installation |
Head mounted(standard Universal helmet interface) |
|
Control mode |
OFF/ON/AUTO/IR |
|
Power consumption |
<0.15W |
|
Battery life |
≥60hrs |
|
Magnification |
1X±5% |
|
FOV |
40°±2° |
|
EPD |
7 mm |
|
IIT |
Gen2+/3 P43/P45 |
|
Lens system |
F1.2 / 25mm |
|
Resolution |
57-64lp/mm |
|
Optical distortion |
3% Max |
|
Coating |
Multi-layer broadband coating |
|
Focal Range |
250mm-∞ |
|
Eye relief |
25mm |
|
Diopter |
-4 - +2SD |
|
EPD adjustment range |
54-80mm |
|
IP Rating |
IP65 |
|
Dimension |
112 x 105 x 86mm |
|
Weight |
490G(battery included) |
|
Operating Temp |
-40 - +50℃ |






|
|

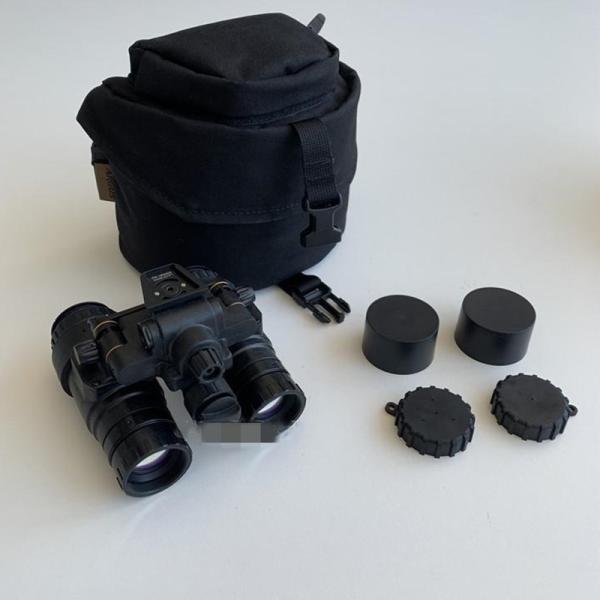

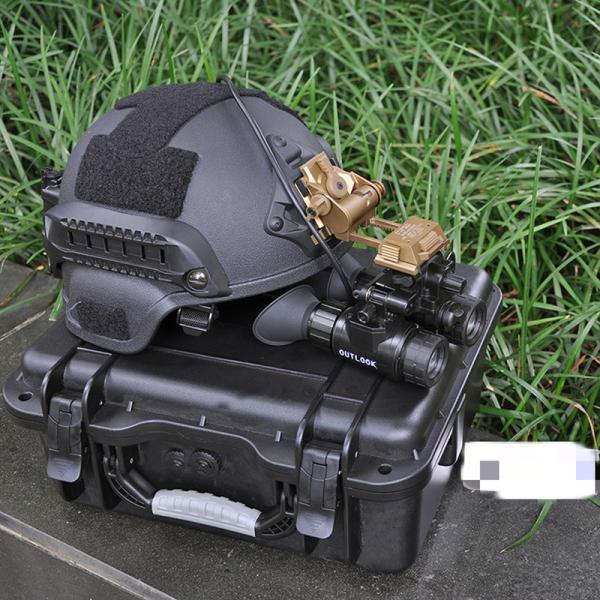

PVS-31 Binocular Night Vision Goggles Gen2+ Night Vision Goggles Military Grade Images |
